At EMACO Global, we specialize in designing and supplying innovative fire protection solutions trusted across industries worldwide. Among our wide range of advanced firefighting products, the foam water sprinkler stands as one of the most reliable and efficient devices for controlling high-risk fire hazards. This system is specifically engineered to deliver low-expansion foam through an overhead sprinkler, combining the cooling effect of water with the smothering properties of foam.

The foam water sprinkler is widely used in deluge foam systems, designed to protect critical zones such as loading and unloading areas, aircraft hangars, chemical processing units, fuel storage facilities, and warehouses. Its ability to control flammable liquid fires and prevent fire escalation makes it a preferred choice for industrial and commercial fire protection strategies.

Understanding Foam Water Sprinkler

A foam water sprinkler is a specialized type of fire sprinkler that operates within a deluge system. Unlike conventional sprinklers that release only water, this system discharges a foam-water solution, making it highly effective against Class B fires caused by flammable liquids.

The design ensures that foam is applied rapidly and uniformly over the risk area, forming a blanket-like cover that prevents oxygen from feeding the flames while simultaneously cooling the surrounding structures. This dual action significantly increases fire suppression efficiency.

How It Works

• Foam concentrate is mixed with water in precise proportions.
• The mixture travels through the piping system to the sprinklers.
• When the system is activated, the foam water sprinkler discharges the foam-water solution in the form of a spray.
• The foam layer smothers the fire, preventing reignition, while the water cools the area.

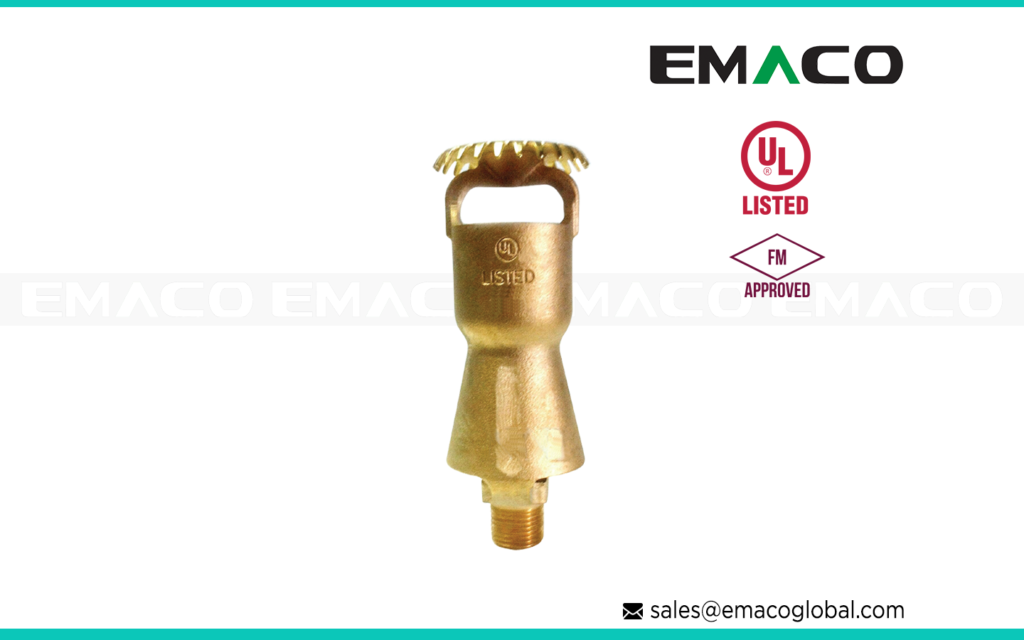

Technical Specifications of Foam Water Sprinkler

At EMACO Global, we offer the Foam Water Sprinkler in multiple configurations to suit different fire protection needs. Each unit is manufactured to the highest international standards and carries UL and FM approvals, ensuring reliability, durability, and compliance.

Key Technical Details:

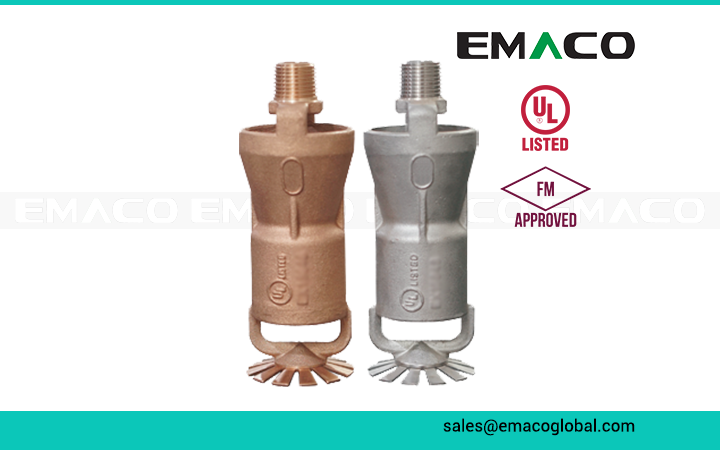

• Model Options:
  • E1 – Stainless Steel, UL/FM approved
  • EH – Bronze, UL/FM approved
• Working Pressure: 175 psi (12 bar)
• Standard Coverage: 100 sq. ft.
• K-Factor: 42
• Mounting Type: Pendent Open and Air Aspirating Type
• End Connection: ½” BSPT (½” NPT optional)

These specifications ensure adaptability across different fire protection systems while maintaining optimal performance.

Applications of Foam Water Sprinkler

The foam water sprinkler is designed for specialized applications where water alone is insufficient to suppress fires, particularly in facilities handling flammable liquids.

Major Applications Include:

• Aircraft Hangars: Protecting aircraft and aviation fuel areas from jet fuel fires.
• Warehousing & Logistics Hubs: Safeguarding large storage areas with mixed fire risks.
• Loading & Unloading Bays: Ensuring safety in areas prone to spills of petroleum, chemicals, or hazardous materials.
• Petrochemical Facilities: Controlling Class B fires in processing plants and storage tanks.
• Marine and Offshore Installations: Providing fire protection in ships, docks, and offshore rigs.
• Industrial Workshops: Securing mechanical and electrical equipment zones prone to oil and chemical fires.

The adaptability of foam water sprinklers makes them indispensable for high-value and high-risk installations.

Advantages of Foam Water Sprinkler

At EMACO Global, we engineer each foam water sprinkler with precision and quality materials to ensure maximum safety. Below are the major advantages of our system:

1. Dual Fire Suppression: Combines water cooling and foam smothering effects for maximum efficiency.
2. Wide Coverage: With a standard 100 sq. ft. coverage, it reduces the number of sprinklers required in large areas.
3. Durable Materials: Available in stainless steel and bronze for corrosion resistance and long life.
4. Global Approvals: UL and FM certifications guarantee compliance with international fire safety standards.
5. Customizable Mounting Options: Suitable for pendant, open, or air-aspirating applications.
6. High Reliability: Designed for quick activation and uniform foam distribution.

These advantages ensure dependable performance during critical fire emergencies, protecting both life and property.

Design and Construction

The foam water sprinkler is designed with meticulous attention to both safety and functionality.

• Body Construction: Available in stainless steel for maximum corrosion resistance or bronze for traditional durability.
• Spray Nozzle Design: Engineered to produce an even foam-water spray pattern, ensuring uniform coverage.
• Threaded Connection: Standard ½” BSPT with optional NPT threading for compatibility with different piping systems.
• Open-Type Configuration: Ensures immediate discharge when the deluge system is activated.

The robust design not only enhances efficiency but also reduces maintenance costs over its lifespan.

Compliance and Approvals

When it comes to fire safety, compliance with international standards is non-negotiable. The EMACO foam water sprinkler is rigorously tested and certified by leading authorities:

• UL Listed—ensuring adherence to globally recognized safety and performance benchmarks.
• FM Approved—certifying reliability under real-world conditions.

This guarantees peace of mind for facility managers, safety engineers, and regulatory authorities.

Installation and Maintenance of Foam Water Sprinkler

Proper installation and regular maintenance are critical to ensuring the long-term performance of a foam water sprinkler system.

Installation Guidelines:

• Should be installed as part of a deluge foam system.
• Requires proper alignment and spacing to achieve standard 100 sq. ft. coverage.
• Must be connected with approved piping and fittings.
• Should be paired with foam concentrate storage and proportioning equipment.

Maintenance Recommendations:

• Routine Inspection: Visual checks for leaks, corrosion, or blockages.
• Flow Testing: Periodic system activation to confirm proper foam discharge.
• Cleaning: Removal of dust, debris, or scaling from the nozzle.
• Annual Certification: Professional testing to maintain UL/FM compliance.

Regular servicing ensures that the foam water sprinkler remains ready for instant operation during emergencies.

Why Choose EMACO Foam Water Sprinkler?

At EMACO Global, our mission is to deliver innovative, reliable, and internationally certified fire safety solutions. Choosing our foam water sprinkler means:

• Proven quality with UL/FM approvals.
• Advanced engineering ensures maximum fire suppression.
• Durable construction with stainless steel and bronze options.
• Worldwide availability and technical support.
• Trusted by industries including aviation, petrochemical, marine, and warehousing.

We don’t just provide equipment—we provide peace of mind in high-risk environments.

Frequently Asked Questions (FAQs)

1. What makes a foam water sprinkler different from a normal water sprinkler?
   Unlike standard sprinklers that release only water, the foam water sprinkler discharges a foam-water solution, making it highly effective against flammable liquid (Class B) fires.
2. Where are foam water sprinklers typically installed?
   They are most commonly installed in aircraft hangars, chemical plants, petroleum storage facilities, and warehouses where high-risk fire hazards exist.
3. Can EMACO foam water sprinklers be customized?
   Yes. They are available in stainless steel or bronze, with options for BSPT or NPT threading and multiple mounting configurations.
4. What is the working pressure of a foam water sprinkler?
   EMACO models are designed to operate at 175 psi (12 bar) for reliable foam distribution.
5. How often should foam water sprinklers be inspected?
   It is recommended to inspect them quarterly and conduct a full system test annually to ensure optimal performance.

The foam water sprinkler is an essential firefighting device for environments where flammable liquid hazards pose a significant risk. Combining water’s cooling properties with foam’s smothering effect ensures rapid fire suppression and prevents re-ignition.

At EMACO Global, we provide UL/FM-approved foam water sprinklers that meet the highest standards of safety, performance, and durability. Designed for critical industries such as aviation, petrochemical, warehousing, and marine, our sprinklers stand as a benchmark in advanced fire protection.

By choosing EMACO, you are not just investing in equipment—you are securing lives, assets, and operations with cutting-edge fire safety technology.
